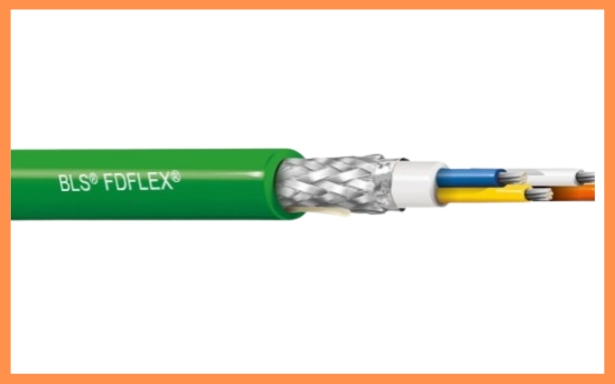

Profinet 4.0 PNP-C5
Profinet 4.0 PNP-C5 cables are specifically designed for industrial Ethernet applications, providing high-speed data transmission and robust performance in demanding environments. These cables are ideal for use in automation systems, ensuring reliable communication between devices and systems.
APPLICATION :
Profinet cable EN 50173-3 & ISO/IEC 24702, extra flexible, for use in cable chains with movement speed of up to 180m/min. Halogen free and flame retardant cable.
| Conductor | Fine threads of copper |
|---|---|
| Insulation | Polyethylene |
| Identification | Blue-white & orange-yellow |
| Cabling | Quad |
| Shielding | Tape of Alu/Pet, with shielding of tinned copper braid, coverage of 85% |
| Exterior sheath | Polyurethane, green colour |
| IEC 60332-1-2 | Flame retardant |
|---|---|
| IEC 60811-2-1 | Resistance to oils and industrial greases |
| IEC 60754-1 | Halogen free |
| Impedance (f=100MHz) | 100 Ohm +/-5 Ohm |
|---|---|
| Bandwidth | 1-100 MHz |
| Minimum bend radius | 8 x diámetro exterior |
| Service temperature | -20ºC to +80ºC |
| Max. movement speed | 180m/min. |
| Max. acceleration/deceleration | 5 m/s² |
| Max. horizontal movement | distance 25 m |
| Number of cycles | Min. 1 mio. / Max. 10 mio. Depending on the exact application. For more information, contact your technical sales manager. |
- Tool Machine
- Automation
- Packaging
- Food & Beverage
- Chemical Industry
- Pharmaceutical Industry
- Glass and Ceramics Industry
- Aeronautical Industry
- Transport & Logistics
