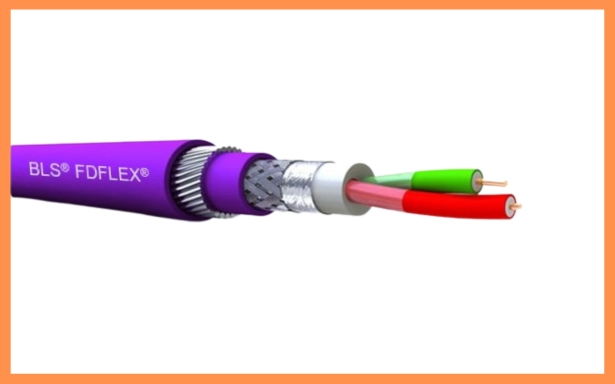

Profibus 4.0 PBP-C
Profibus 4.0 PBP-C cables are designed for high-performance industrial communication, providing reliable and efficient data transmission for Profibus networks in demanding environments. These cables are essential for automation systems, ensuring seamless communication between devices and systems.
APPLICATION :
Profibus DP Cable, extra flexible, for use in cable chains with movement speed of up to 180m/min. Halogen free and flame retardant cable.
| Conductor | Fine threads of copper (AWG26/19) |
|---|---|
| Insulation | FPE |
| Identification | Red & green |
| Cabling | 1 pair |
| Shielding | Tape of Alu/Pet, with shielding of tinned copper braid, coverage of 65% |
| Exterior sheath | Polyurethane, turquoise colour |
| IEC 60332-1-2 | Flame retardant |
|---|---|
| IEC 60811-2-1 | Resistance to oils and industrial greases |
| IEC 60754-1 | Halogen free |
| Characteristic impedance | 150 Ohm +/-15 Ohm |
|---|---|
| Capacitance to 1 KHz | 28 nF/km |
| Minimum bend radius | 8 x outer diameter |
| Service temperature | -20ºC to +80ºC |
| Max. movement speed | 180m/min. |
| Max. acceleration/deceleration | 4 m/s² |
| Max. horizontal movement | distance 25 m |
| Number of cycles | Min. 1 mio. / Max. 10 mio. Depending on the exact application. For more information, contact your technical sales manager. |
- Tool Machine
- Automation
- Packaging
- Food & Beverage
- Chemical Industry
- Pharmaceutical Industry
- Glass and Ceramics Industry
- Aeronautical Industry
- Transport & Logistics
