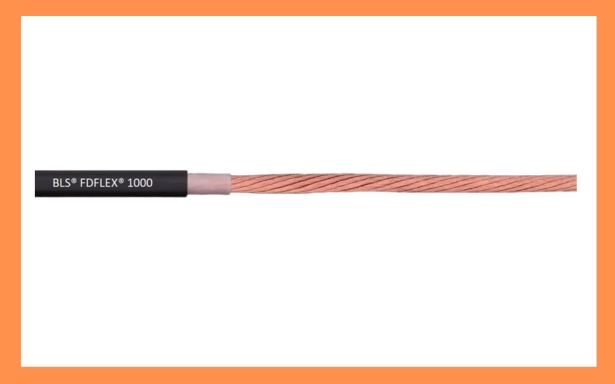

FDFLEX ® 1000 (PVC)
FDFLEX ® 1000 cables are designed for high-performance servomotor power applications. These extra flexible cables feature TPE insulation and PVC sheathing, making them ideal for use in cable chains with movement speeds of up to 300 m/min.
APPLICATION :
Servomotor power and cable, extra flexible with TPE insulation and PVC sheath, for use in cable chains with movement speed of up to 300m/min. CE & ROHS certified. Halogen free and flame retardant cable.
| Conductor | Fine threads of bare copper, extra flexible, Class 6 according to EN 60228 |
|---|---|
| Insulation | TPE |
| Identification | According to system, consult |
| Cabling | In concentric layers with optimum feed-through cabling |
| Shielding | Tinned copper braid |
| Exterior sheath | PVC |
| CE & ROHS | Certification for USA and Canada |
|---|---|
| UL FT2 | Flame retardant |
| HD 22.10 | Resistance to oils and industrial greases |
| EN 60754-1 | Halogen free |
| Other features | Good resistance to acids, alkaline solutions, solvents, hydraulic liquids, etc. |
| Resistant to abrasion and cuts | |
| Outer sheath with low-adherence surface | |
| Excellent resistance to moisture |
| Service voltage | 600/1100V |
|---|---|
| Test voltage | 4000V |
| Minimum bend radius | 7.5 x outer diameter |
| Service temperature | -40ºC to +80ºC |
| Max. movement speed | 300m/min. |
| Max. acceleration/deceleration | 40 m/s² |
| Max. horizontal movement | distance 400 m |
| Number of cycles | Min. 1 mio. / Max. 10 mio. Depending on the exact application. For more information, contact your technical sales manager. |
- Tool Machine
- Automation
- Packaging
- Food & Beverage
- Chemical Industry
- Pharmaceutical Industry
- Glass and Ceramics Industry
- Aeronautical Industry
- Transport & Logistics
