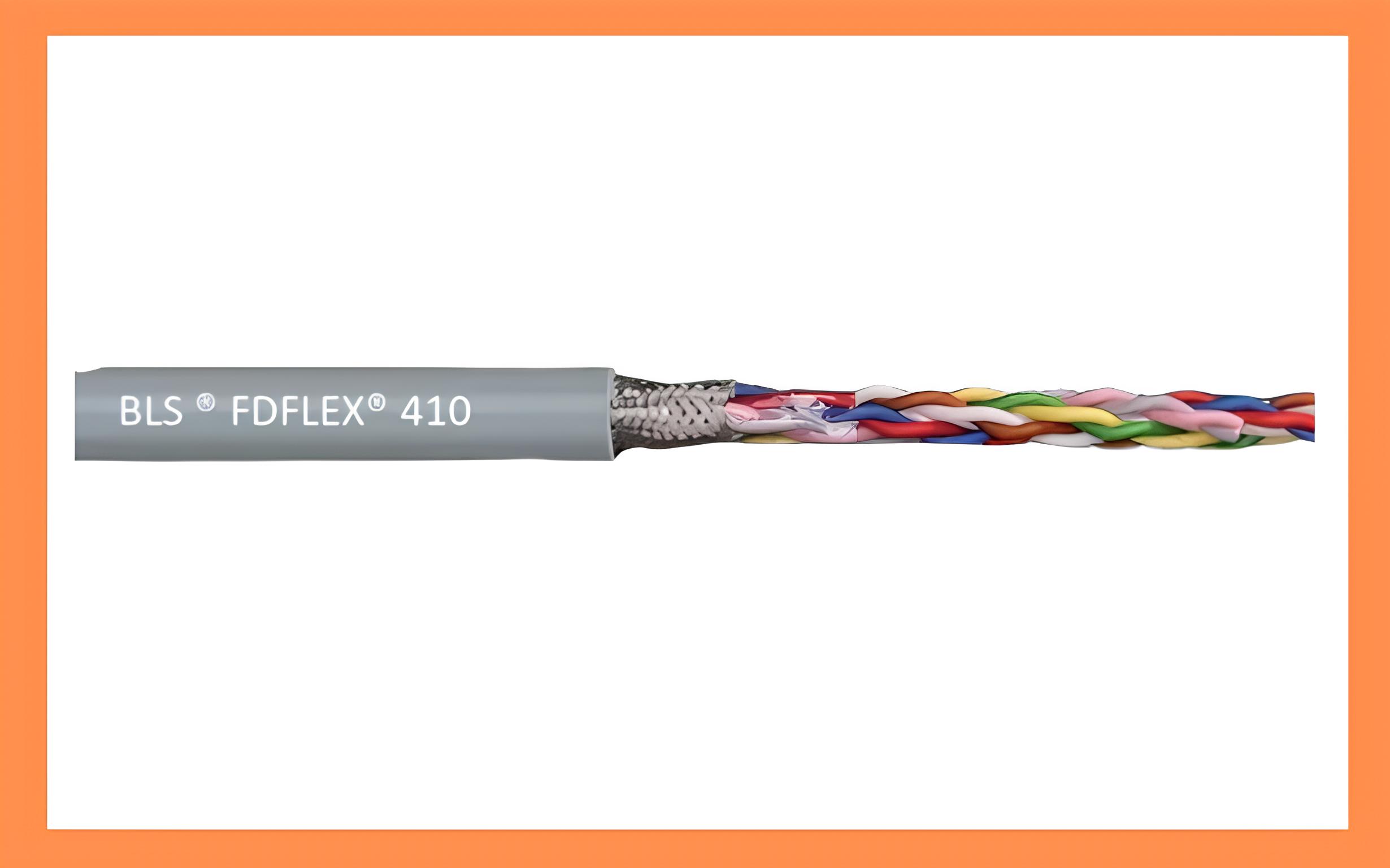

FDFLEX ® 410 (PVC)
Discover unparalleled signal transmission performance with FDFLEX ® 410 cables. These cables are designed for demanding applications, featuring extra flexibility with TPE insulation and PVC sheathing. Ideal for use in cable chains with movement speeds of up to 250 m/min, they ensure reliable data transmission even in dynamic environments.
APPLICATION :
Signal cable, extra flexible with TPE insulation and PVC sheath, for use in cable chains with movement speed of up to 250 m/min. CE & ROHS certified. Halogen free and flame retardant cable
| Conductor | Fine threads of bare copper, extra flexible, Class 6 according to EN 60228 |
|---|---|
| Insulation | TPE |
| Identification | DIN 47100 (colours) |
| Cabling | In concentric layers with optimum feed through cabling |
| Exterior sheath | PVC |
| CE & ROHS | Certification for USA and Canada |
|---|---|
| UL FT2 | Flame retardant |
| HD 22.10 | Resistance to oils and industrial greases |
| EN 60754-1 | Halogen free |
| Other features | Good resistance to acids, alkaline solutions, solvents, hydraulic liquids, etc. |
| Resistant to abrasion and cuts | |
| Outer sheath with low-adherence surface | |
| Excellent resistance to moisture |
| Service voltage | 200V/300V |
|---|---|
| Test voltage | 4000V |
| Minimum bend radius | 7,5 x outer diameter |
| Service temperature | -5ºC to +80ºC |
| Max. movement speed | 250 m/min. |
| Max. acceleration/deceleration | 30 m/s² |
| Max. horizontal movement | max. 25m |
| Number of cycles | Min. 1 mio. / Max. 10 mio. Depending on the exact application. For more information, contact your technical sales manager. |
- Tool Machine
- Automation
- Packaging
- Food & Beverage
- Chemical Industry
- Pharmaceutical Industry
- Glass and Ceramics Industry
- Aeronautical Industry
- Transport & Logistics
