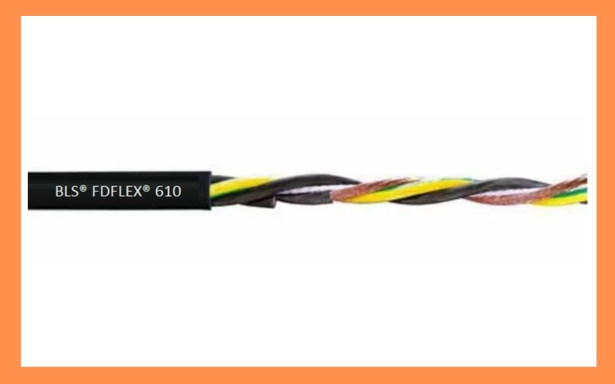

FDFLEX ® 610 (PUR)
FDFLEX ® 610 cables are designed for optimal power and control in dynamic environments. These extra flexible cables feature durable TPE and PUR sheathing, making them ideal for use in cable chains with movement speeds of up to 400 m/min.
APPLICATION :
FDFLEX ® 610 cables are designed for optimal power and control in dynamic environments. These extra flexible cables feature durable TPE and PUR sheathing, making them ideal for use in cable chains with movement speeds of up to 400 m/min.
| Conductor | Fine threads of bare copper, extra flexible, Class 6 according to EN 60228 |
|---|---|
| Insulation | TPE |
| Identification | Black with white numbers, conductor yw/grn (G) |
| Cabling | In concentric layers with optimum feed-through cabling |
| Exterior sheath | PUR |
| CE & ROHS | Certification for USA and Canada |
|---|---|
| UL FT2 | Flame retardant |
| HD 22.10 | Resistance to oils and industrial greases |
| EN 60754-1 | Halogen free |
| Other features | Good resistance to acids, alkaline solutions, solvents, hydraulic liquids, etc. |
| Resistant to abrasion and cuts | |
| Outer sheath with low-adherence surface | |
| Excellent resistance to moisture |
| Service voltage | 600V/1100V |
|---|---|
| Test voltage | 4000V |
| Minimum bend radius | 6.8 x outer diameter |
| Service temperature | -25ºC to +80ºC |
| Max. movement speed | 400 m/min. |
| Max. acceleration/deceleration | 30 m/s² |
| Max. horizontal movement | distance 250 m |
| Number of cycles | Min. 1 mio. / Max. 10 mio. Depending on the exact application. For more information, contact your technical sales manager. |
- Tool Machine
- Automation
- Packaging
- Food & Beverage
- Chemical Industry
- Pharmaceutical Industry
- Glass and Ceramics Industry
- Aeronautical Industry
- Transport & Logistics
