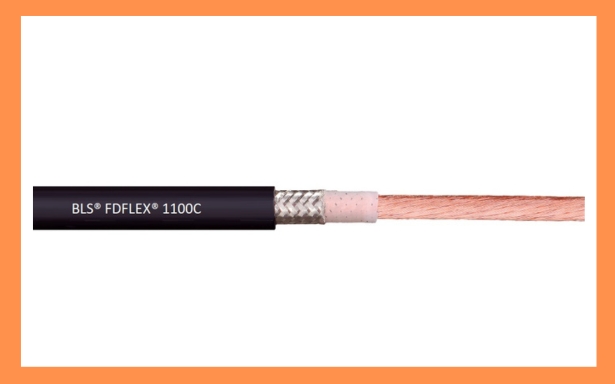

FDFLEX ® 1100C (TPE Shielded)
FDFLEX ® 1100C Shielded Cables are designed for high-performance servomotor power applications. These shielded cables feature extra flexibility with TPE insulation and TPE sheathing, making them ideal for use in cable chains with movement speeds of up to 300 m/min.
APPLICATION :
Servomotor power and cable, extra flexible with TPE insulation and TPE sheath, for use in cable chains with movement speed of up to 300m/min. CE & ROHS certified. Halogen free and flame retardant cable.
| Conductor | Fine threads of bare copper, extra flexible, Class 6 according to EN 60228 |
|---|---|
| Insulation | TPE |
| Identification | According to system, consult |
| Cabling | In concentric layers with optimum feed-through cabling |
| Shielding | Tinned copper braid |
| Exterior sheath | TPE |
| CE & ROHS | Certification for USA and Canada |
|---|---|
| UL FT2 | Flame retardant |
| HD 22.10 | Resistance to oils and industrial greases |
| EN 60754-1 | Halogen free |
| Other features | Good resistance to acids, alkaline solutions, solvents, hydraulic liquids, etc. |
| Resistant to abrasion and cuts | |
| Outer sheath with low-adherence surface | |
| Excellent resistance to moisture |
| Service voltage | 600V/1100V |
|---|---|
| Test voltage | 4000V |
| Minimum bend radius | 7.5 x outer diameter |
| Service temperature | -40ºC to +80ºC |
| Max. movement speed | 300 m/min. |
| Max. acceleration/deceleration | 40 m/s² |
| Max. horizontal movement | distance 400 m |
| Number of cycles | Min. 1 mio. / Max. 10 mio. Depending on the exact application. For more information, contact your technical sales manager. |
- Tool Machine
- Automation
- Packaging
- Food & Beverage
- Chemical Industry
- Pharmaceutical Industry
- Glass and Ceramics Industry
- Aeronautical Industry
- Transport & Logistics
