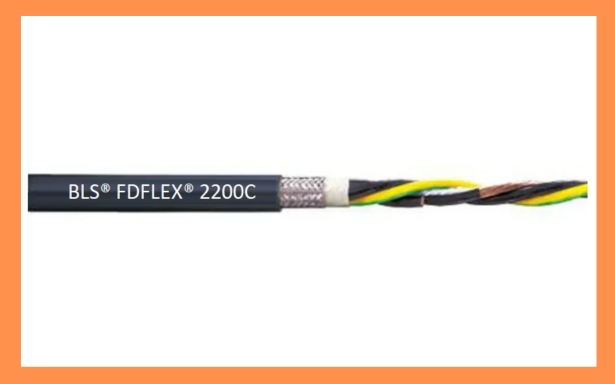

FDFLEX ® 2200 (PVC Shielded)
FDFLEX ® 2200C Shielded Cables are designed for high-performance power and control in dynamic environments. These shielded, extra flexible cables feature a durable PVC sheath, making them ideal for use in cable chains with movement speeds of up to 400 m/min.
APPLICATION :
Power and control cable, extra flexible with PVC sheath, for use in cable chains with movement speed of up to 200 m/min. Flame retardant cable.
| Conductor | Fine threads of bare copper, extra flexible, Class 6 according to EN 60228 |
|---|---|
| Insulation | TPE |
| Identification | Black with white numbers, conductor yw/grn (G) |
| Cabling | Core wound in bundle around a high tensile centre element with optimuised short pitch length |
| Exterior sheath | PVC |
| IEC 60332-1-2 | Flame retardant |
|---|---|
| IEC 60811-2-1 | Resistance to oils and industrial greases |
| Service voltage | 600/1100V |
|---|---|
| Test voltage | 4000V |
| Minimum bend radius | 7.5 x outer diameter |
| Service temperature | -5ºC to +80ºC |
| Max. movement speed | 400m/min. |
| Max. acceleration/deceleration | 15 m/s² |
| Max. horizontal movement | distance 200 m |
| Number of cycles | Min. 1 mio. / Max. 10 mio. Depending on the exact application. For more information, contact your technical sales manager. |
- Tool Machine
- Automation
- Packaging
- Food & Beverage
- Chemical Industry
- Pharmaceutical Industry
- Glass and Ceramics Industry
- Aeronautical Industry
- Transport & Logistics
