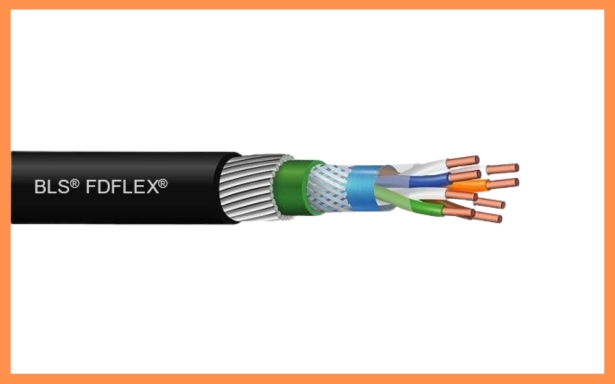

Ethernet Industrial 4.0 EIP-C6-ES
Ethernet Industrial 4.0 EIP-C6-ES cables are designed for high-performance industrial Ethernet applications, offering superior data transmission capabilities and robust performance in demanding environments. These cables are ideal for advanced industrial automation systems, ensuring reliable and efficient communication between devices and systems.
APPLICATION :
: Easy to strip Ethernet Industrial Cable, Cat.6A, extra flexible, for use in cable chains with movement speed of up to 180m/min. Halogen free and flame retardant cable.
| Conductor | Fine threads of copper (AWG26/19) |
|---|---|
| Insulation | Thermoplastic polymer |
| Identification | white/blue-blue, white/orange-orange, white/green-green, white/brown-brown |
| Cabling | 4 pairs in the set with fillings |
| Seating | Seating for easy stripping |
| Shielding | Tape of Alu/Pet, with shielding of tinned copper braid, coverage of 90% |
| Exterior sheath | Polyurethane, green colour |
| IEC 60332-1-2 | Flame retardant |
|---|---|
| IEC 60811-2-1 | Resistance to oils and industrial greases |
| IEC 60754-1 | Halogen free |
| Impedance (f=100MHz) | 100 Ohm +/-5 Ohm |
|---|---|
| Bandwidth | 1-250 MHz |
| Minimum bend radius | 12.5 x outer diameter |
| Service temperature | -20ºC to +80ºC |
| Max. movement speed | 180m/min. |
| Max. acceleration/deceleration | 4 m/s² |
| Max. horizontal movement | distance 10 m |
| Number of cycles | Min. 1 mio. / Max. 10 mio. Depending on the exact application. For more information, contact your technical sales manager. |
- Tool Machine
- Automation
- Packaging
- Food & Beverage
- Chemical Industry
- Pharmaceutical Industry
- Glass and Ceramics Industry
- Aeronautical Industry
- Transport & Logistics
